Kit servo motor i driver 400w 20-80VDC cijena: 4.500,00kn+pdv
Servo Motor Drive 400W 8,4A 1,28Nm,2500ppr 20-80VDC ACM604V60-01-2500+ACS806
Električne specifikacije za motor
|
Model |
Rated Voltage(VDC) |
Rated Power(W) |
Rated Torque (N.M) |
Peak Torque(N.M) |
Rated Speed(RPM) |
Rated Current(A) | Peak Current(A) | Torque Const.(N.M/A) | Back EMF Const. (V/RPM) | Resistance(ohms) | Inductance(mH) | Inertia (kgm2 x 10-4) | Motor length L(mm) | Mass(kg) |
| ACM604V60 |
60 |
400 |
1.28 |
3.82 |
3000 |
8.4 |
25 |
0.161 |
5.54x 10-2 |
0.19 |
0.59 |
0.3549 | 245 | 1.463 |
Dimenzije motora
Kontroler specifikacija
Električne specifikacije kontrolera
|
Parameters |
ACS806 |
|||
|
Min. |
Typical |
Max. |
Unit |
|
|
Peak output current |
0 |
- |
18 |
A |
|
Continue output current |
0 |
- |
6 |
A |
|
Supply voltage |
+18 |
- |
+80 |
VDC |
|
Logic signal current |
7 |
10 |
16 |
mA |
|
Pulse input frequency |
0 |
- |
600 |
kHz |
|
Isolation resistance |
500 |
|
|
Mohm |
|
Current provided to encoder |
- |
- |
100 |
|

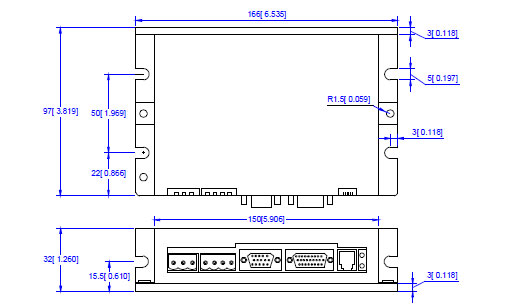

Dimenzije kontrolera
---------------------------------------------------------------------------------------------------------------------------------
Servo motori i driveri DELTA:
Izaberite potrebne karakteristike i pošaljite upit na naš E mail
| Power | Servo Drive | Servo Motor |
| 100W | ASD-A2-0121-_ | ECMA-C10401_S (S=8mm) |
| 200W | ASD-A2-0221-_ | ECMA-C10602_S (S=14mm) |
| 400W | ASD-A2-0421-_ | ECMA-C10604_S (S=14mm) ECMA-C10804_7 (7=14mm) ECMA-E11305_S (S=22mm) ECMA-G11303_S (S=22mm) |
| 750W | ASD-A2-0721-_ | ECMA-C10807_S (S=19mm) ECMA-G11306_S (S=22mm) |
| 1000W | ASD-A2-1021-_ | ECMA-C11010_S (S=22mm) ECMA-E11310_S (S=22mm) ECMA-G11309_S (S=22mm) |
| 1500W | ASD-A2-1521-_ | ECMA-E11315_S (S=22mm) |
| 2000W | ASD-A2-2023-_ | ECMA-C11020_S (S=22mm) ECMA-E11320_S (S=22mm) ECMA-E11820_S (S=35mm) |
| 3000W | ASD-A2-3023-_ | ECMA-E11830_S (S=35mm) ECMA-F11830_S (S=35mm) |
| 4500W | ASD-A2-4523-_ | ECMA-F21845_S (S=35mm) |
| 5500W | ASD-A2-5523-_ | ECMA-F21855_3 (3=42mm) |
| 7500W | ASD-A2-7523-_ | ECMA-F21875_3 (3=42mm |
